Bag Filter

Bag Filter

Reliable Dust Filtration for Clean, Compliant Airflow

SPIL Bag Filters are high-efficiency, modular fabric filtration units engineered to remove particulate matter from industrial gas streams. Designed as primary or final-stage collectors, our bag filters deliver reliable particulate capture, low operating cost, and long service life in demanding process-plant environments.

Why Choose SPIL Bag Filters?

The Bag Filter system is built to perform in tough industrial environments and delivers superior filtration precision under challenging conditions. Our customizable design adapts to dust type, gas velocity, temperature, and humidity to ensure optimal performance across various applications. Proven to handle high dust loads efficiently, the system is ideal for boilers, furnaces, and kilns. Backed by the trusted engineering and support of Sharad Projects India Ltd., SPIL Bag Filters offer reliable, long-term dust control solutions.

Key Features

  • High Filtration Efficiency For fine and coarse particulates.
  • Modular, Scalable Design to match airflow and dust-loading requirements
  • Wide Range of Filter Media polyester, PTFE-coated polyester, nylon, glass fiber, and specialty blends

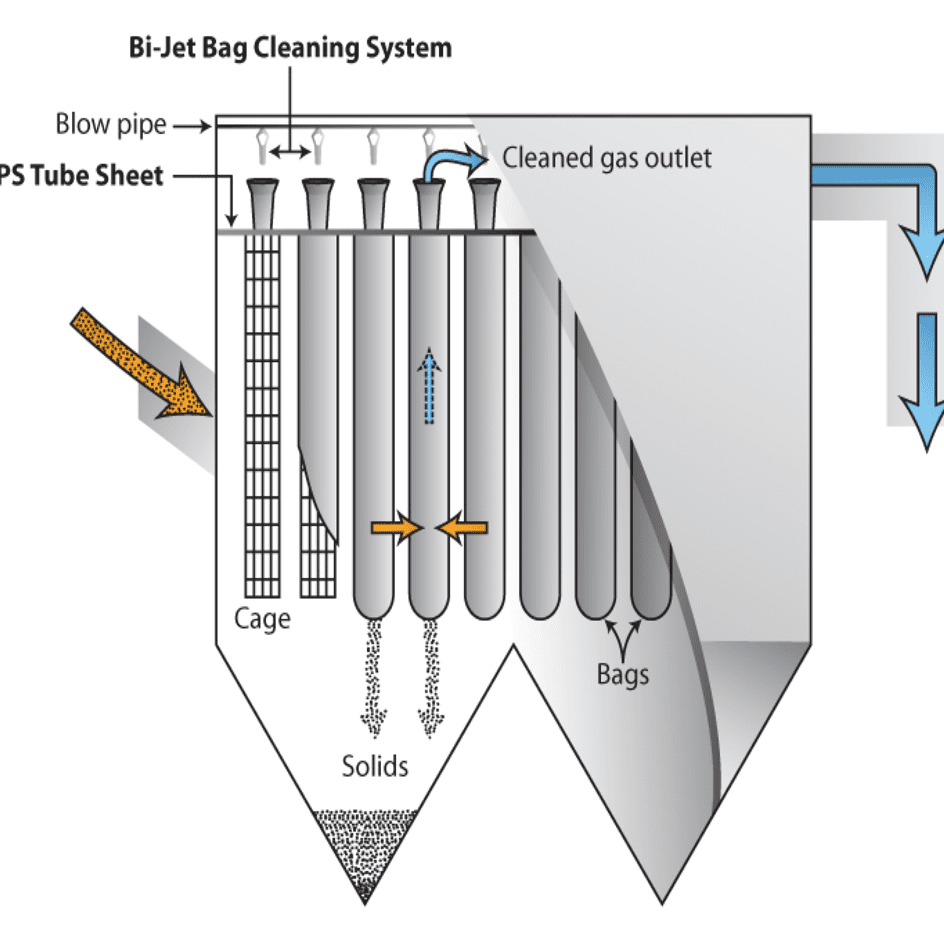

  • Multiple Cleaning Options pulse-jet, reverse-air, and shaker cleaning systems
  • Robust Construction carbon steel, stainless steel, or abrasion-resistant liners for aggressive dusts
  • Low Pressure Drop through optimized bag/cage geometry
  • Easy Maintenance quick-change bag access and on-site replaceable modules
  • Integrated Accessories inlet diffusers, hopper with rotary valve, level indicators, and pressure-drop monitoring

Typical Applications

  • Boiler Flue-Gas Cleaning
  • Cement & Clinker Plants
  • Pulp & Paper Finishing Processes
  • Sugar & Food Processing
  • Metalworking and Foundries
  • Pharmaceuticals and Chemical Processing
  • Waste-to-Energy and Incineration Flue Gas
  • Wastewater Treatment Plant
  • Vents and off-Gases

Design Considerations

  • Filter media selection matched to temperature, chemical exposure, and particle abrasiveness
  • Particle size distribution and specific dust characteristics
  • Wide Range of Filter Media polyester, PTFE-coated polyester, nylon, glass fiber, and specialty blends
  • Gas volumetric flow rate and face velocity
  • Operating temperature and humidity
  • Dust loading (g/m3) and cleaning cycle frequency
  • Presence of sticky or fibrous materials that may require pre-separation
